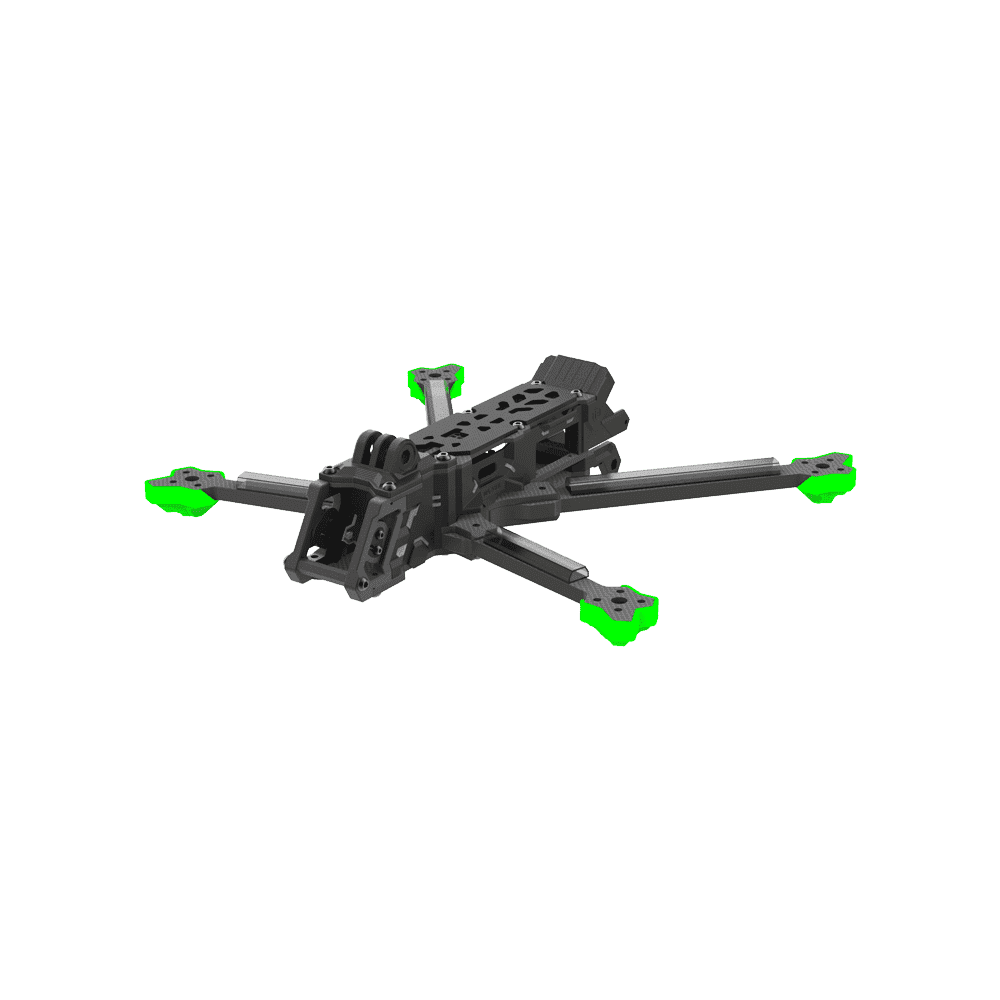

iFlight Nazgul Evoque F6D V2 Frame Kit

iFlight Nazgul Evoque F6D V2 Frame Kit Descriptions :  The old days are over, getting your electronics full of dirt and wet grass every time you crash . Our latest frame reduces contamination that could build up on your flight controller or ESCs , preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts . Upgrading your I Flight Nazgul F6 V1 To V2 ? :  If you want to upgrade your Nazgul Evoque F6 V1 with the DJI O3 Air Unit read this: – The FC (Flight Controller) to O3 VTX connector is different than the older Caddx Vista/Polar plug. You’ll need to DIY. – The RX (Receiver) position changed. V1 antenna length is 75mm, V2 is 220mm. You’ll need to DIY. – The XT60 plug was changed, you’ll need to de-solder the V1 plug and install the V2 plug. Included in the frame kit. – If you’re going from F6X V1 to F6X V2 all motor wires will have the same length. – If you’re going from F6X V1 to F6D V2 the back motor wires need to be extended , since you change frame geometry . – The Antenna TPU in the back comes in 2 Versions; One for the original single DJI VTX antenna, or one for the dual antenna setup. The kit includes a dual antenna TPU. 2x 5.8G LHCP antennas need to be installed . – The Nazgul Evoque F6 V2 BNF comes with a new Anti Spark filter pre-installed. Please select the option to purchase separately; it’s not included in the frame kit . Specifications :  Frame wheelbase : 255mm (Squashed X) / 262 mm (DeadCat) Frame Dimension : L196*W164*H36 mm (Squashed X) / L209*W162*H36 mm (DeadCat) Arm Thickness : 6mm Frame Body Dimension : 36mm Bottom Plate Thickness : 3mm Top Plate Thickness : 2mm Upper Plate Thickness : 3mm Camera Plate Thickness : 3mm Motor Mounting : 16x16mm VTX Mounting : 25.5*25.5 φ1.6mm Weight : 150grams (Included no TPU Parts) Package included :  1 x Evoque F6 V2 Frame Kit 1 x O3 Air Unit Heatsink 2 x O3 IPEX to RP-SMA Antenna Pigtails 1 x O3 Dual Antenna 1 x GoPro TPU Base Mount 2 x Anti-slip Battery Pad 4 x TPU Armguard 1 x Front Bumper TPU 1 x Rear Bumper TPU 2 x Anti-slip Battery Pad 2 x Battery Strap (20*250mm) 1 x Battery Strap(20*250mm) 1 x Screw Bag Check Review iFlight Nazgul Evoque F6D V2 Frame Kit :
