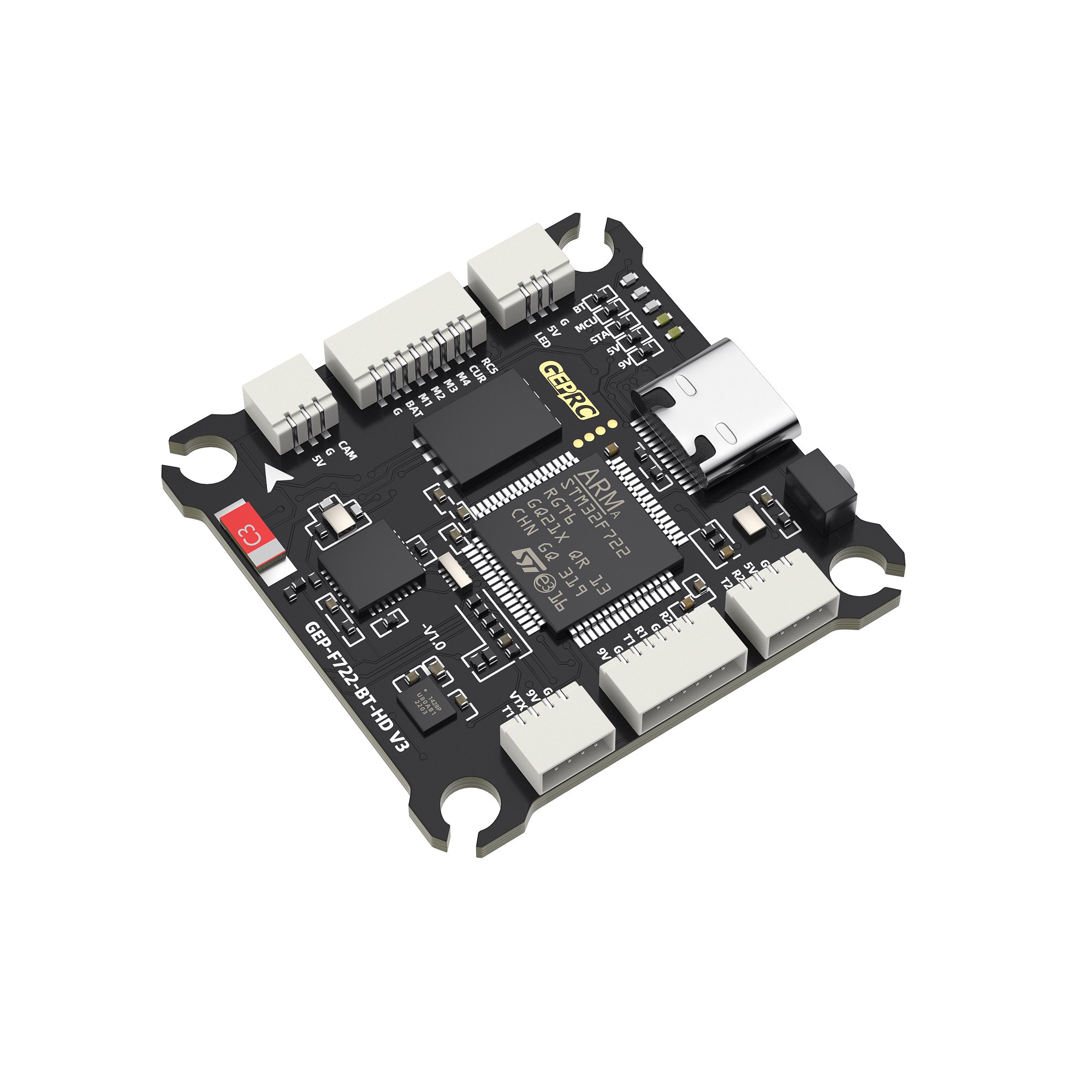

GEPRC F722 BT HD V3 Flight Controller

GEPRC F722 BT HD V3 Flight Controller Feature Use mainstream STM32F722 chip  Equipped with the latest 42688-P gyroscope 512M black box storage  Support Bluetooth parameter tuning Integrated LC filter  Upgrade type-C USB interface Directly plugs into the DJI Air Unit  Simple and effective installation with shock-absorbing mounts for stable gyroscope performance Integrated Barometer  [email protected] 5V@3A dual independent BEC Specifications MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD：BetaFlight OSD w/ AT7456E chip BEC：5V@3A,[email protected] dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size：36.9×36.9mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g Includes 1 x Flight Controller 1 x DJI Air Unit Adapter Cable 1 x Flight Controller Adapter Cable 4 x Nylon nuts 4 x Silicone grommets 2 x sh1.0 4pinsilicone cable 1 x Camera connection cable
