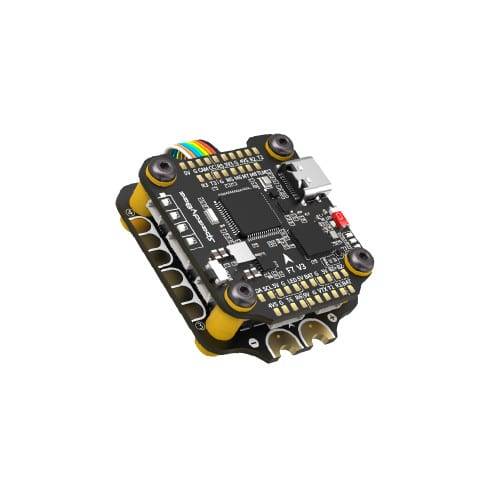

SpeedyBee F7 V3 BL32 50A 30x30 Stack

SpeedyBee F7 V3 PREMIUM SPEC. AFFORDABLE PRICE Flash your firmware 33% faster wirelessly full FC configuration Built with a better Bluetooth/WiFi 2-in-1 chip for 33% faster wireless data transfer. Update FC firmware with your smartphone in just 1 minute! Connect this FC via Bluetooth and fully configure any setting for Betaflight/INAV as you want. Get your Blackbox data in 1 minute anytime, anywhere With an optimized algorithm and upgraded Bluetooth/WiFi chip, you can dive into your Blackbox data every time you land your quad. Just take your smartphone out, connect, and download your flight in 20 seconds. The path to progress has never been easier. Hate soldering? Just plug them all in! It’s 2022, so having a plug vs soldering option is a must! Plug in your digital video transmitter, receiver, camera, VTX, and GPS to complete your build in no time. Also comes with 4x LED plugs so you can light up your quad with no headache. Prefer soldering? Just flip the board and start working on it. Change your motor direction wirelessly Finishing your latest build? Just replaced your motor after a crash? Take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app. Works for all BLHeli32 / BLHeli_S / BlueJay ESCs. 8 motors output, perfect for your X8 cinelifters! There’s no other X8 flight controller better than this. Forget about crawling through your massive build just to plug in that USB cable. Just take out your phone to configure that X8 monster wirelessly before that challenging commercial shot. Professional FPV pilots got no time to waste. Light up your quad in no time with 4x LED plugs Need more visibility at night? Just plug in your LEDs and blaze the darkest trail you can find, no soldering required. With just one tap on the Boot button, you can cycle through all different LED presets* and pick the one you love! *Or long press the boot button to switch to Betaflight LED mode Forgot your LiPo checker? Just look at the FC! Built with a 4-level LED battery indicator, now you can fly anywhere worry-free – even without your lipo checker! 32MB (typical FC memory) X 16 =500MB onboard Blackbox flash memory Store up to 100 complete flights with our huge 500MB onboard Blackbox flash memory. Or keep your encrypted Area 51 files in it for your top-secret Man in Black mission. Whatever suits your tactical purpose. *The Flash memory chip manufacture calculates the capacity by a rate of 1000(instead of 1024), so the display capacity on your computer will be slightly less than 500MB. And packed with other useful features ● 9V 4A 5V 2A individual BECs ● Power your GPS with a USB cable – no battery needed ● 22mm cutouts for FPV camera in your tight build ● Built-in barometer for accurate height calculation SpeedyBee BL32 50A 4-in-1 ESC 50A ESC MADE FOR CHAMPIONS When we say 50A, we mean it. Real 50A output, ready for your baddest, meanest 6S motors. Blast through any obstacle during freestyle with no worry, or keep that highest throttle position during races. 1000uF Low ESR capacitor TVS protective diode = Extra protection The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. We also provide a humongous 1000uF low ESR capacitor, ensuring clean data from the gyro to the FC. Tested by 2 top racing pilots with both over 1500 packs, or you can put it to the test yourself. Wanna crank it up to 128KHz PWM? Why not? With F4 MCU, you can set the PWM frequency up to 128KHz. Find the best PWM frequency* to get for your build without any limitation. * The ideal PWM frequency for each build varies depending on the frame, motors, props, and other factors. Higher PWM frequency doesn’t necessarily means smoother flight. If the default 48KHz is not working for your build, you can increase the value gradually until you find the sweet spot. Check your motor temperature to avoid overheating. CNC heat sink shield = no overheating in any condition Built with high-quality CNC heat sink to significantly reduce the heat from your MOSFETs ensuring stable current flow at a high throttle position. Great benefit in a stylish blue finish. Specifications Product Name SpeedyBee F7 V3 Flight Controller MCU STM32F722 IMU(Gyro) BMI270 USB Port Type Type-C Barometer BMP280 OSD Chip AT7456E chip BLE Bluetooth Supported. Used for Flight Controller configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip Flash FC Firmware Wirelessly Supported. Please enter MENU > FC Firmware Flasher Download/Analyze Blackbox Supported.Please enter MENU > Blackbox Analyzer DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering. 6-pin DJI Air Unit Plug Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed. Flash(for BlackBox) 500MB BetaFlight Camera Control Pad Yes(CC pad on the front side) Power Input 3S – 6S Lipo 5V Output 10 groups of 5V output, three 5V pads and 1 BZ pad( used for Buzzer) on front side, and 6 5V output included in the connectors on bottom side. The total current load is 2A. 9V Output 2 groups of 9V output, one 9V pad on front side and other included in a connector on bottom side. The total current load is 4A. 3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load. 4.5V Output Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. ESC Signal Pads M1 – M4 on bottom side and M5-M8 on front side. UART 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6) ESC Telemetry UART R4(UART4) I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc. LED Pad Used for WS2812 LED controlled by Betaflight firmware. Buzzer BZ and BZ- pad used for 5V Buzzer BOOT Button Supported. [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. RSSI Input Supported. Named as RS on the front side. SmartPort Supported Supported Flight Controller Firmware BetaFlight(Default),INAV Firmware Target Name SPEEDYBEEF7V3 Mounting 30.5 x 30.5mm( 4mm hole diameter) Dimension 41(L) x 38(W) x 8.1(H)mm Weight 10.7g Product Name SpeedyBee BL32 50A 4-in-1 ESC Firmware SpeedyBee BL32 50A Configurator Download Link http://github.com/bitdump/BLHeli/releases Continuous Current 50A * 4 Burst Current 55A(5seconds) TVS Protective diode Yes Heat Sink Yes External Capacitor 1000uF Low ESR Capacitor(In the package) ESC Protocol DSHOT300/600 PWM Frequency Range 16KHz-128KHz Power Input 3-6S LiPo Power Output VBAT Current Sensor Support (Scale=490 Offset=0) ESC Telemetry supported Mounting 30.5 x 30.5mm( 4mm hole diameter) Dimension 45.6(L) * 40(W) * 8.8mm(H) Weight 19.2g with heat sink Manual English 中文
